A Veteran Owned BusinessTW1000 Residential Booster Pump Systems
Product Overview:
TW1000 Residential Booster Pump Systems are compact, variable-speed simplex packages designed to improve low or inconsistent domestic water pressure in single-family homes and other residential applications. They can be applied to municipal water supplies, storage tanks, or properly configured well-water systems.

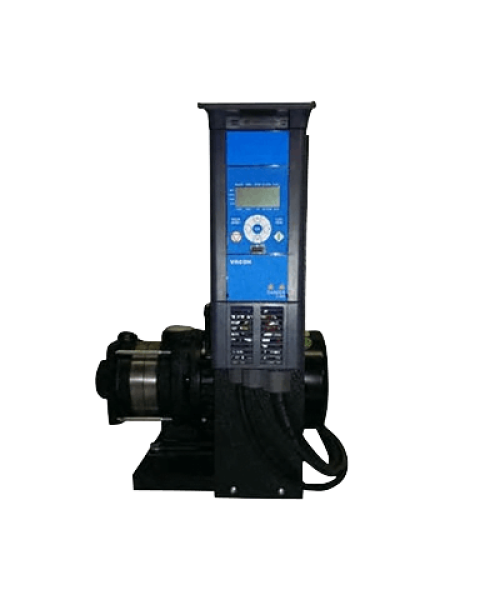

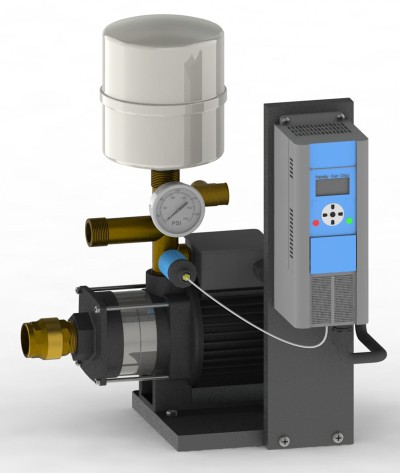

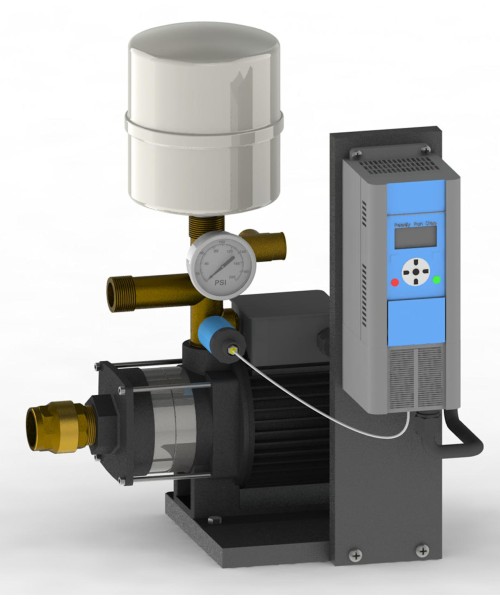

Each system includes a centrifugal booster pump, check valve, variable frequency drive with integrated controls, pressure tank, pressure gauge, and pressure-sensing controls. Systems are prewired, programmed, and factory-tested for simplified installation and dependable constant-pressure operation.
How TW1000 Residential Booster Pump Systems Work
TW1000 systems are packaged simplex booster pump systems designed for domestic potable-water applications. Each system combines a centrifugal booster pump with a true variable frequency drive (VFD). Pressure-sensing controls continuously monitor system pressure, and the VFD automatically adjusts pump speed to match changing water demand and maintain a consistent pressure setpoint.
Standard Package Includes
- Centrifugal booster pump
- Variable frequency drive with integrated controls
- Pressure tank
- Pressure gauge
- Check valve
- Pressure-sensing controls
- Prewired, programmed, and factory-tested assembly
Typical Applications
TW1000 systems are commonly selected for single-family homes experiencing inadequate municipal water pressure or noticeable pressure loss when multiple fixtures are operating. Depending on the system design, they may also be used with storage tanks or properly configured well-water systems.
Choosing the Right Model
The correct model depends on available incoming pressure, required flow, desired pressure boost, piping conditions, and available electrical power. The Common Design Points shown above are examples of typical applications and should not be used as the sole basis for final selection.
Click View Submittal to review the pump curve, electrical requirements, connections, dimensions, and model-specific information. For assistance selecting a system, complete the Residential Questionnaire or contact Towle Whitney.
| Specification Sheets (Submittals) | |
|---|---|
| Model | TW1000-2T-3K Lenze.pdf |
| Model | TW1000-2T-4K Lenze.pdf |
| Model | TW1000-2T-5K Lenze.pdf |
| Model | TW1000-2T-6K Lenze.pdf |
| Model | TW1000-4T-3K Lenze.pdf |
| Model | TW1000-4T-4K Lenze.pdf |
| Model | TW1000-CM3-4 Lenze.pdf |
| Specifications | |
|---|---|
| HP | 1/2 - 2 |
| GPM | 10 - 30 |
| PSI Boost | 40 - 85 |
